magnets for heavy duty lifting Powerful 1000kg Permanent Magnetic Lifter / crane lifting magnet

  • 2 - 4 Acres
    $260.00
  • 5 - 9 Acres
    $248.00
  • >=10 Acres
    $230.00
Model Number:
PML-1000
Max Lifting Capacity:
1000kg
Min Lifting Capacity:
100kg
Shipping:
Support Sea freight
Lead Time:
Quantity(Acres) 1 - 5 6 - 10 11 - 20 >20
Est. Time(days) 4 6 10 Negotiable
Customization:
Customized logo (Min. Order: 50 Acres)
OEM (Min. Order: 50 Acres)
Samples:
$255.00 /Acre | 1 Acre (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction works , Energy & Mining
After Warranty Service:
Video technical support
Local Service Location:
None
Showroom Location:
None
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
JAKARTA OEM
Certification:
ISO9001:2008 / CE
Dimension(L*W*H):
266*134*140 mm
Warranty:
12 Months
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Product Name:
Manual Permanent Magnetic Lifter
COLOR:
Yellow Magnetic Lifter
Maximum Lifting Weight:
1000kG
keywords:
magnetic plate lifter
Usage:
Lifting objects
Power source:
Permanent Magnetic
Net Weight:
34 kg
Other Name:
Three times Magnetic Lifter
warranty:
12 month
Supply Ability
Supply Ability:
5980 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Export Wooden case Packing
According to customer's request
Port
shanghai port,china
Picture Example:
package-img
package-img
Lead Time :
Quantity(Acres) 1 - 5 6 - 10 11 - 20 >20
Est. Time(days) 4 6 10 To be negotiated
Magnetic Lifter

PML-100

Product Description
Name: Magnetic Lifter
Model: PML-100
Rated lifting strength: 100KGF
Max pull-off strength: 320KGF
Operation temperature: <80°
Dead weight: 3KG
Passed the CE approval
DIMENSIONS:92×65×69(MM)

PML-300

Name: Magnetic Lifter
Model: PML-300
Rated lifting strength: 300KGF
Max pull-off strength: 930KGF
Operation temperature: <80°
Dead weight: 9.5KG
Passed the CE approval
DIMENSIONS:165×93×95(MM)

PML-600

Product Description
Name: Magnetic Lifter
Model: PML-600
Rated lifting strength: 600KGF
Max pull-off strength: 1820KGF
Operation temperature: <80°
Dead weight: 19KG
Passed the CE approval
DIMENSIONS:206×113×115(MM)

Parameter List

Model
Capacity
kg

Main Dimensions
Net
Weight
KG
L
B
H
R
PML-100
100
Three
time
Break
Force
94
65
69
155
2.5
PML-200
200
130
65
69
155
3.5
PML-300
300
165
93
95
185
9.5
PML-400
400


Three

time

Break

Force
206
95
95
200
12
PML-600
600
206
113
115
230
19
PML-1000
1000
260
135
140
255
34
PML-1500
1500
340
135
140
255
63
PML-2000
2000
356
160
166
320
82
PML-3000
3000
444
160
166
380
122
PML-4000
4000
530
175
175
550
160
PML-5000
5000
620
220
220
600
290
PML-6000
6000
808
235
290
800
380

Operation of Magnetic Lifter

Using high property ND-Fe-B,Changing magnetic force by rotating the handle,achieve retention and release the work-piece. Ring on the top of lifter and V type groove make work easy.

Before lifting, clean up the surface of workpiece first. Make sure the center of magnet chuck and workpiece weight coincide,then turn the crank from "-" to "+" . Check if it's auto-locked, then crane.

When lifting, overloading is prohibited.No body allowed to pass through under it.The temperature of workpiece and ambient can not over 80degree.without violent vibration and impact.

When lifting round work-piece, keep B chamfer liner contact with the workpiece adjacent angel. So the lifting force will only 30%~50% lifting capacity.

After finish lifting, turn the crank from "+" to "-".Then the workpiece drop off with the lifting jack.

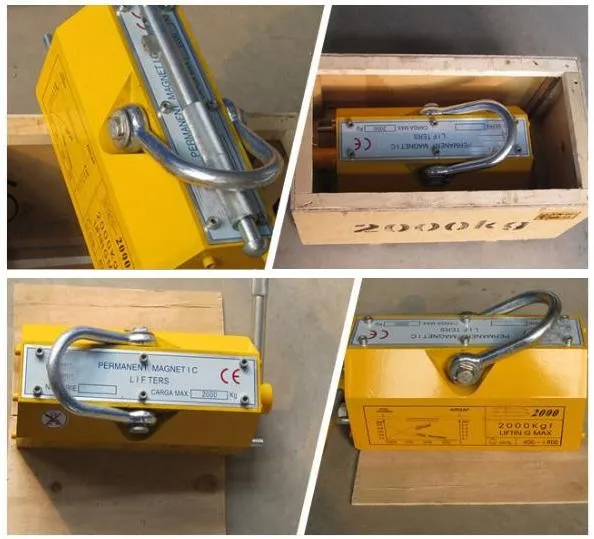

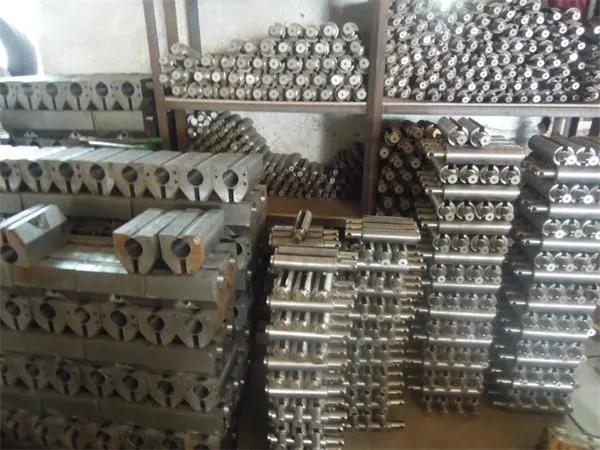

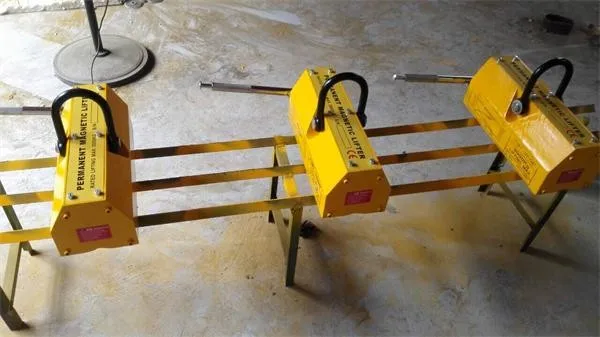

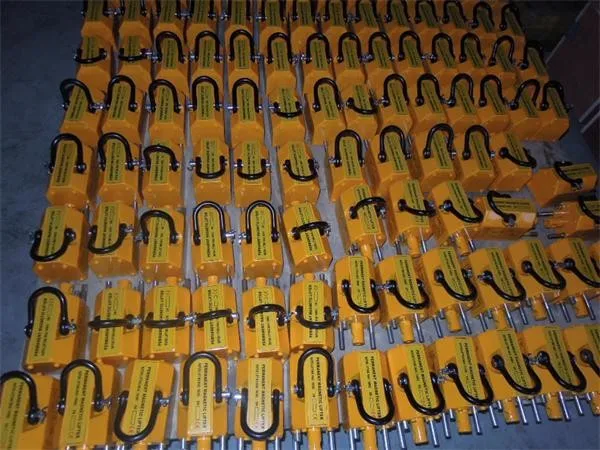

Detail Photos

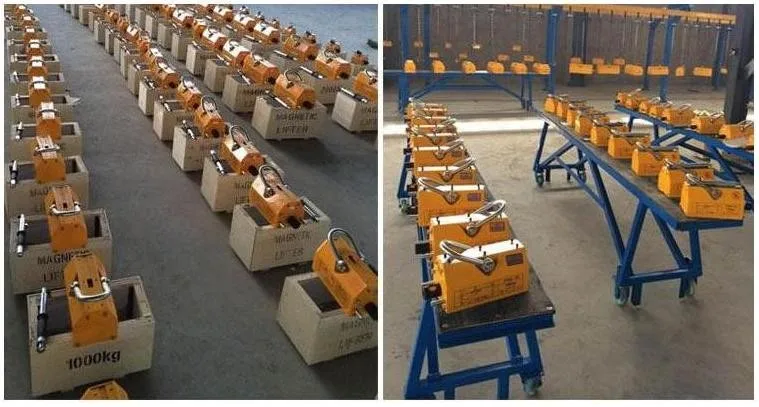

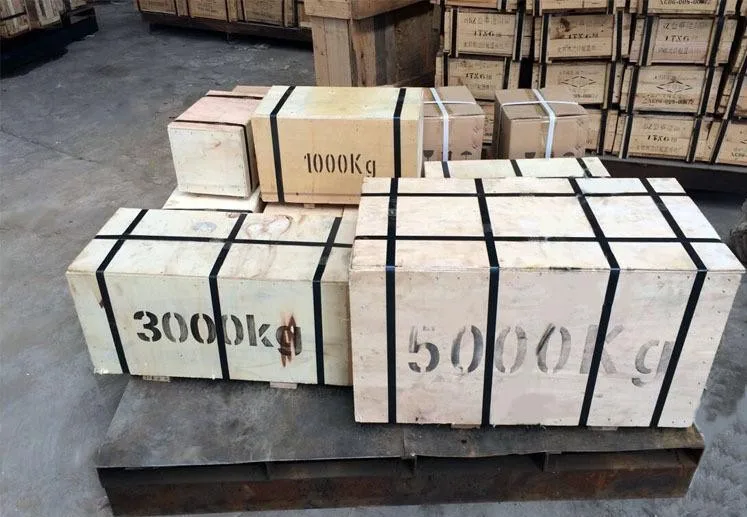

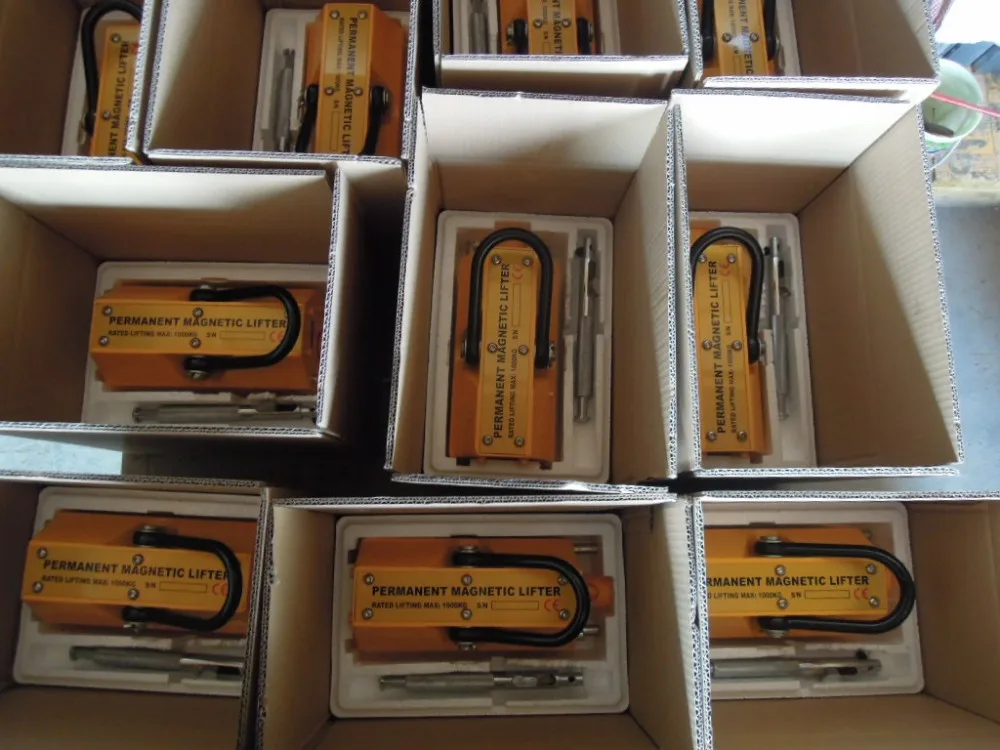

Packing & Delivery

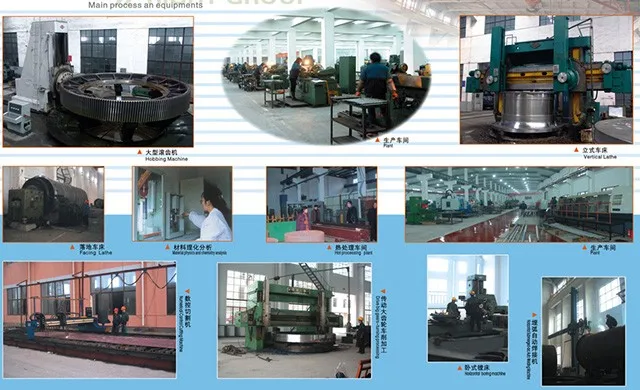

machinery-factory
Company Profile

Our Great Service Team

Best Quality and Service are Our Life

Exhibition scene

We participated in exhibitions and achieved good results.

Our Team and Foreign customers

We carry out annual meetings every year, inviting Domestic and foreign customers to join us, increasing our friendship and cooperation to achieve win-win results.

FAQ

1.The Mini Order of 1 ton lifting magnet permanent magnetic lifter ?
We can accept only one piece.

2.About sample.
The buyer should offer the cost and freight, if the quantity is big then can turn back all of it after placing the order.

3.About payment of 1 ton lifting magnet permanent magnetic lifter .
100% TT as deposite, if amount more than 5000usd.Or 30%TT as deposite, balance after B/L copy.

4.How long does it take to receive my order?
About 15 Days from we get the down payment, 7 days for sample order.

5.What is the information should I provide when inquiry?
a. How many will I want to buy?
b. How much is the maximum capacity of the permanent magnet lifter ?

6.How will my order shipped?
Usually shipped by sea, small order or urget order we can send you by Air or DHL,UPS or Fedex, after

received your agreement.
