60 ton electronic weighbridge truck scale with low price

  • 1 - 4 Sets
    $7,200.00
  • 5 - 49 Sets
    $7,100.00
  • >=50 Sets
    $7,000.00
Type:
Axle Scale Crane Scale Floor Scale Weigh Beam
Rated Load:
20000kg
Accuracy:
0.1kg
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 20 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
CIMT
Model Number:
SCS
Power Supply:
220V
Display Type:
LCD
Color:
Printing(white + Black)
Capacity:
8~200KG (d=100)
Certificate:
ISO
Display:
Big LCD Display
Use:
Heavy Goods
Rated Load:
10~150T
weighing body structure:
6-8 main longitudinal girders
steel plate surface:
epoxy zinc rich primer and acrylic marine paint
load cell protection class:
IP68
modular platform:
4, 5, 6 meters module
Supply Ability
Supply Ability:
1986 Set/Sets per Year
Packaging & Delivery
Packaging Details
The body of truck scale is nude packed in Container / the accessories are packed in Wooden box
Container / Wooden box
According to customers' request
Port
shanghai Port, China
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 20 30 To be negotiated
Product Description

Digital truck scale
"Digital truck scale " is a new generation product updates, with the development of electronic technology ,"digital technology " also entered the weighing field "digital truck scale ,electronic truck scale " represents the most advanced technological level , it use s advanced digital intelligent weighing sensor and digital weighing display instrument ,make whole the performance of automobile scale better environmental adaptability , weighing more intelligent , thereby greatly improving the quality of new and high technology of electronic truck scale , which makes the electronic truck scale embarked on the road of digitalization.

Truck scale description

1.Weighing Capacity: Series
2.Structure: U-shape beams
3.Thickness of plate (8mm 10mm 12mm 14mm)
4.Painting: Anti rust and anti corrosion painting

Truck scale description

5.Accuracy class: OIML(III

6.Body:3 section 6 pcs
7.Safe Overload: 120%
8. NO. of load cells: 8 ZEMIC load cells

Truck scale description

9.With XK3190 A9p indicator(mini printer)
10.All the screws and tools used for installation has been included in the price

Standard part:

1.Scale body
2.ZEMIC load cells
3.Indicator
4.junction box
5.cable (50m)
6. foundation drawings
7. screws & tools. Etc

A.With a top cover on the platform for access to the load cells.
B.Composed of 4 or 6 U beams and C channel beams,robust and rigid.
C.Middle dissected,with bolts connection. Double shear beam load cell or compression load cell selectable.
D.Pit & pitless mounted alternatively,and pit mounted more often.
E.Easy assembly and installation Width available: 2.2m 2.5m 3m 3.2m 3.4m.
Standard length available: 5m, 6m, 7m, 8m, 9m, 10m, 12m, 14m, 16m, 18m, 20m, 21m.
Max Capacity available: 10t, 20t, 30t, 40t, 50t, 60t, 80t, 100t, 120t, 150t.
3 sets of 3x18m can be placed in one 40'high containerk.

Parameter List
Name
Data
Truck scale width
2.2m,2.5m,3m,3.2m.3.4m
Truck scale length
5m,6m,7m,8m,9m,10m,12m,14m,16m,18m ,21m
Accuracy class
OIML(III)
Capacity range
10 ~150(Ton)
Safe overload
150%
Material
Q235 steel plate
Thickness of plate
10mm or 12mm or 14mm
Structure
U shape bridge construction stucture
Structure Thhickness
6mm
Painting
Anti rust and anti corrosion painting
Work temperature
Indicator:-10°C to +40°C Scale platform: -30°C to +65°C
power supply
220V 50HZ to 230V 60HZ or 110V 60HZ
Packing detail
Carton packing
Quality system
ISO9001:2008
Certificate numble
04809Q11426R0M
Produce permit certificate
China Metrology Certification

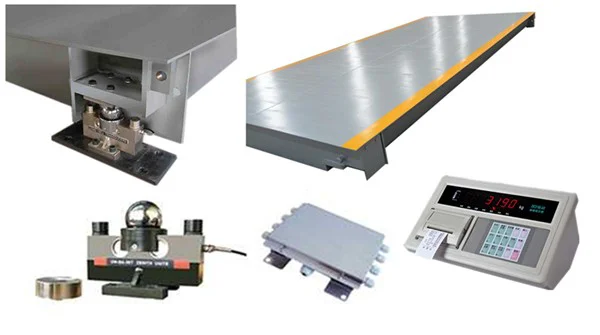

Standard accessory part include:
Weighing indicator
Electronic type or digital type
Load cell/sensor
Electronic type or digital type
Printer
Panasonic Brand/Epson Brand optional
Junction boxes
Waterproof type wire junction boxes
Connect cable
20m or 30m(depends on the distance from scale house to scale)
Screw
Bolts-screws,limit screw,loading cell screw,cover plate screw
Installation tools
Inner six angle spanner,Uncrock spanners,Screwdriver.

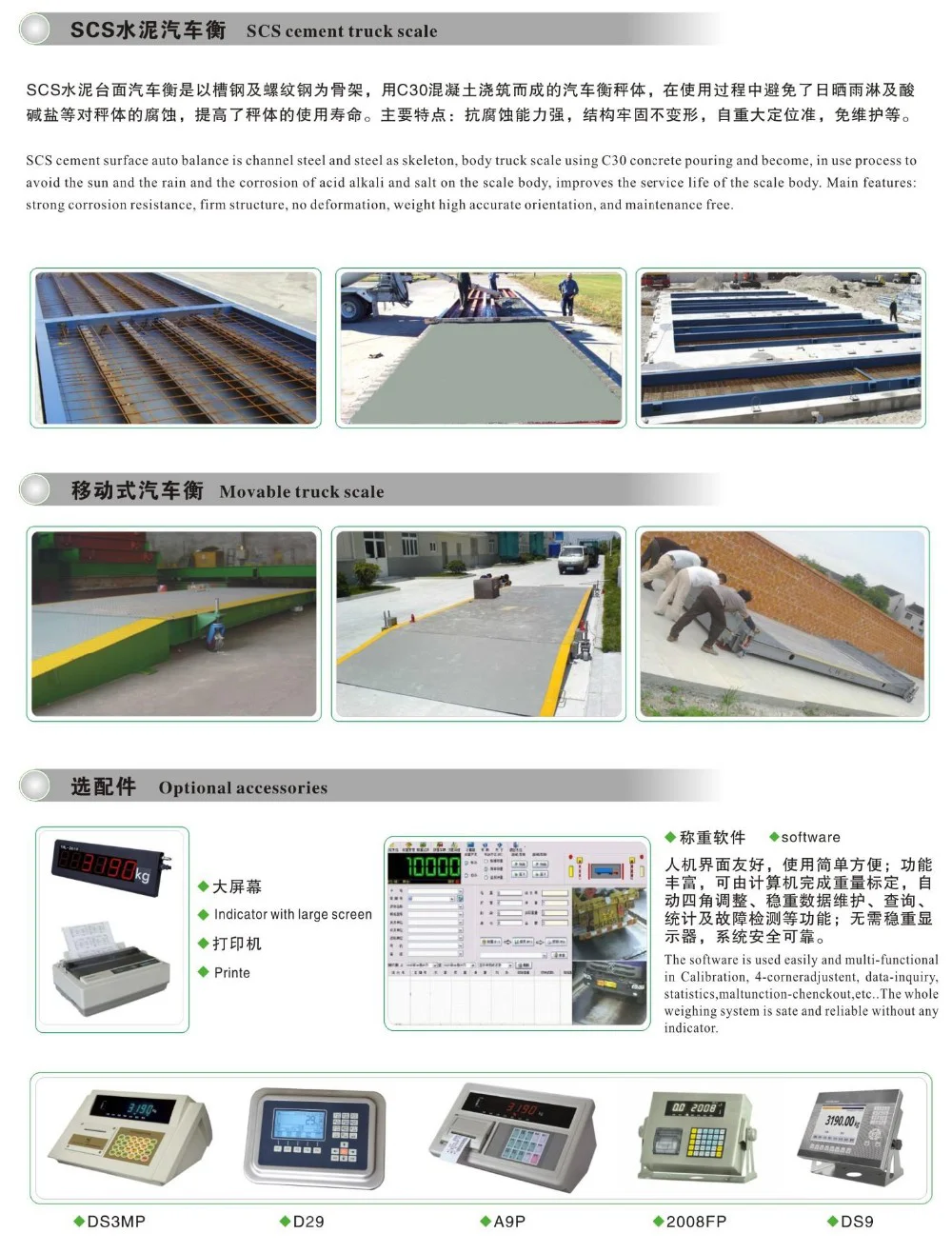

Optional accessory part include:
Scoreboard
Convenience for seeing weighing result in the long distance.
Weighing management software
Install software in PC and operate the truck ID,tare,net,gross,accumulation etc intelligence automatic sys
PC
Brand desktop computer

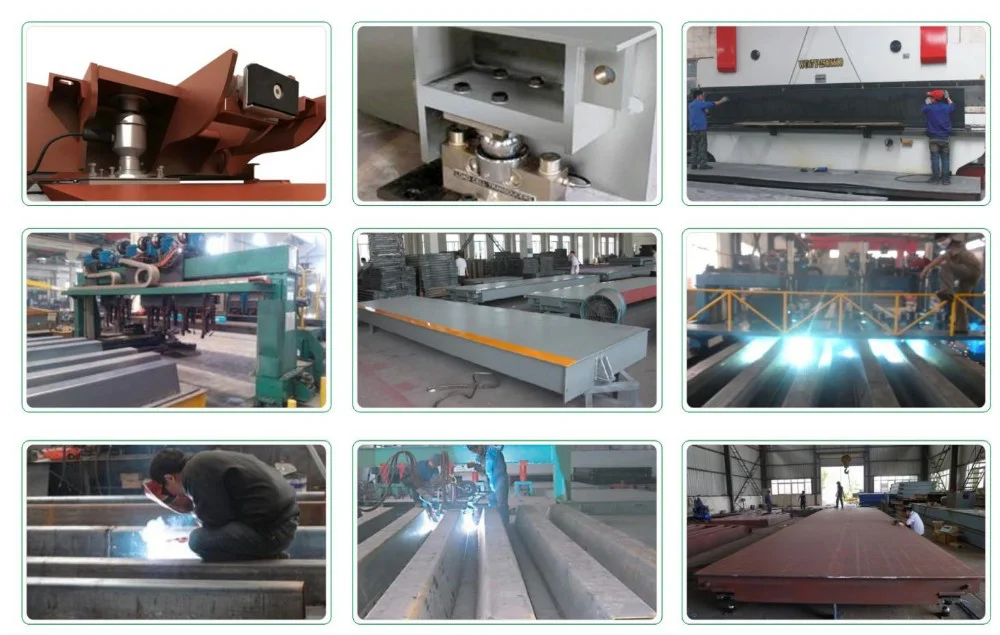

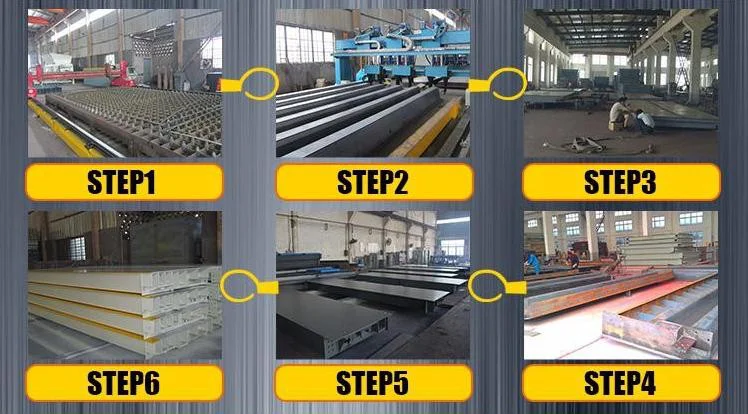

Detailed Images

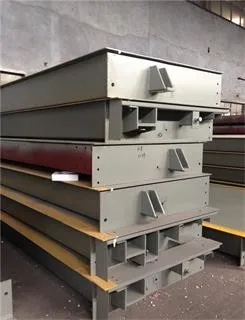

Packing & Delivery
Company Profile

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
