2018 new design Truck Scale weigh Bridge price

FOB Reference Price:Get Latest Price
$3,560.00 - $8,280.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
CIMT / OEM
Model Number:
SCS
Type:
Truck Scale
Power Supply:
220V(AC) 50HZ
Display Type:
LED Display
Rated Load:
10~150T
Accuracy:
20kg ~ 50kg
Product name:
Truck Weight Scale
Capacity/accuracy:
10~150T/5~50kg
weighing body structure:
6-8 main longitudinal girders
Name:
Truck weighbridge
internal cavity:
omniseal and anticorrosion
steel plate surface:
epoxy zinc rich primer and acrylic marine paint
load cell function:
anticorrosion, moistureproof and lighthing prevention
oil film thickness:
100 microns, stronger anticorrosion ability
modular platform:
5, 6 and 7 meters module
load cell protection class:
IP68
Supply Ability
Supply Ability:
1200 Set/Sets per Year
Packaging & Delivery
Packaging Details
The body of truck scale is nude packed and the accessories are packed in cartons.
Port
Shanghai Port
Lead Time :
Shipped in 15 days after payment
Product Description

Truck scale description

1.Weighing Capacity: 10~150 ton
2.Structure: U-shape beams
3.Thickness of plate ( 10mm 12mm 14mm)
4.Painting: Anti rust and anti corrosion painting

Truck scale description

5.Accuracy class: OIML(III)

6.Body:1/2/3/4 section 2/4/6/8 pcs
7.Safe Overload: 150%
8. NO. of load cells: 4/6/8/10 ZEMIC load cells

Truck scale description

9.With XK3190 A9p indicator

(mini printer)
10.All the screws and tools used for installation has been not included in the price

Standard part:

1.Scale body
2.ZEMIC load cells
3.Indicator
4.junction box
5.cable (50m)
6. foundation drawings
7. screws & tools. Etc

A.With a top cover on the platform for access to the load cells.
B.Composed of 4 or 6 U beams and C channel beams,robust and rigid.
C.Middle dissected,with bolts connection. Double shear beam load cell or compression load cell selectable.
D.Pit & pitless mounted alternatively,and pit mounted more often.
E.Easy assembly and installation Width available: 2.2m 2.5m 3m 3.2m 3.4m.
Standard length available: 5m, 6m, 7m, 8m, 9m, 10m, 12m, 14m, 16m, 18m, 20m, 21m.
Max Capacity available: 10t, 20t, 30t, 40t, 50t, 60t, 80t, 100t, 120t, 150t.
3 sets of 3x18m can be placed in one 40'high containerk.

Parameter List
Name
Data
Truck scale width
3m,3.2m.3.4m,3.5m
Truck scale length
6m,7m,8m,9m,10m,12m,14m,16m,18m,20m,21m,22m,23m,24m
Accuracy class
OIML(III)
   Capacity range
10-150(Ton)
   Safe overload
150%
Material
Q235 steel
   Thickness of plate
10mm or 12mm
     Structure
U shape bridge construction stucture
Structure Thhickness
6mm
Painting
Anti rust and anti corrosion painting
   Work temperature
Indicator:-10°C to +40°C Scale platform: -30°C to +65°C
power supply
220V 50HZ to 230V 60HZ or 110V 60HZ
Packing detail
Carton packing
Quality system
ISO9001:2008
Certificate numble
04809Q11426R0M
Produce permit certificate
 China Metrology Certification

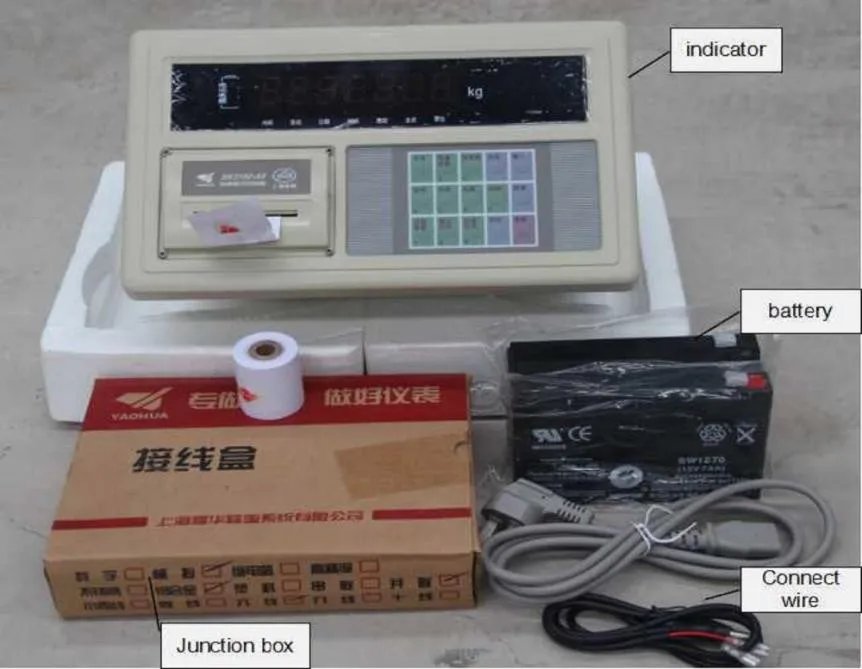

Standard accessory part include:
Weighing indicator
Electronic type or digital type
Load cell/sensor
Electronic type or digital type
Printer
Panasonic Brand/Epson Brand optional
Junction boxes
Waterproof type wire junction boxes
Connect cable
20m or 30m(depends on the distance from scale house to scale)
Screw
Bolts-screws,limit screw,loading cell screw,cover plate screw
Installation tools
Inner six angle spanner,Uncrock spanners,Screwdriver.
Optional accessory part include:
Scoreboard
Convenience for seeing weighing result in the long distance.
Weighing management software
Install software in PC and operate the truck ID,tare,net,gross,accumulation etc intelligence automatic system.
PC
    Brand desktop computer
Detailed Images

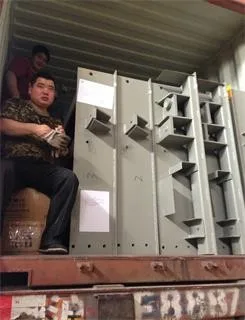

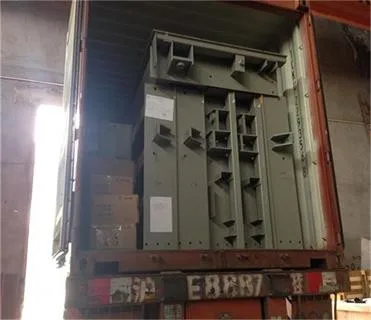

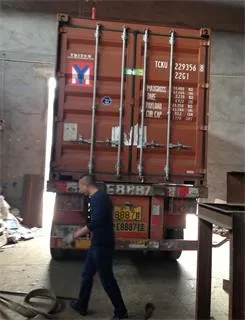

Packing & Delivery
Company Profile
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Our Weigh Bridge

1.Modularization, serialization weighing platform, multi-module combination

2.Automatic reset force transmission system

3.Digital displays gross weight, net weight and tare weight

4.10 times overload record recently

5.The indicator can filters the noise wave and delete the weight of small objects

6.Don't need to Calibrate when replace indicator

7.With accurate clock, calendar, automatic leap year leap month, don't influence by off power.

8.Store vehicle No., tare weight, sub-item accumulation and total accumulation
