Chinese supplier Air-tight rubber airbag tug boat fender for tugboat and workboat

FOB Reference Price:Get Latest Price
$158.00 - $8,850.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
CIMT
Model Number:
Dia.0.5m~Dia.4.5m
Part:
Marine Fender
Name:
Marine Airbag
Product Name:
Marine fender
Material:
Natural Rubber
Application:
Marine/quay/dock/boat
Color:
Black
Diameter:
0.5~4.5m
Length:
1~9m
Weight:
25~4320KG
Certificate:
ISO17357:2002
Reaction:
64~7551KN
Supply Ability
Supply Ability:
1980 Piece/Pieces per Quarter
Packaging & Delivery
Packaging Details
Export Standard Packing
Wooden Pallet package/ Container
According to coustomer's request
Port
Shanghai,ningbo,qingdao... China Port
Lead Time :
Shipped in 35 days after payment
Products description
            Marine fenders have become an ideal ship protection medium against collision among ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), they are widely used for large tankers, vessels, docks, harbor wharfs and ocean platforms.

Pneumatic Rubber Fender Advantages:

1. High energy absorption and with a low reaction force
2. Light weight, portable and floatable, can be installed and replaced easily
3. Heavy duty and long service life-over 10 years
4. Supplied as sling type (body only) or with chain and tire net for protection of the fender body
5. Sizes from 0.5m diameter × 1.0m length up to 4.5m diameter × 9m length
6. Suitable for locations with large and small tidal differences

Classification of floating pneumatic fender:

Fender types:

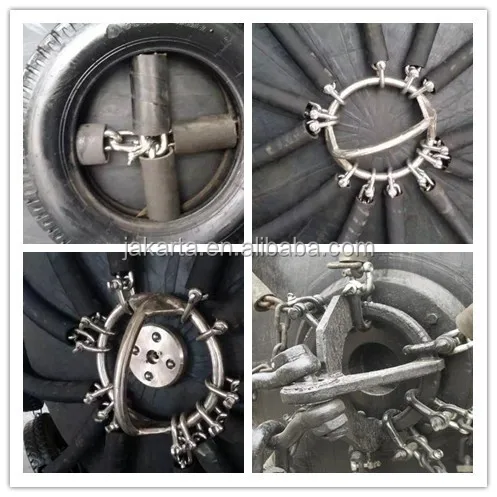

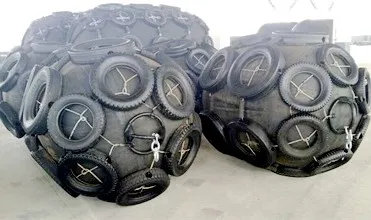

1.Net-type fender: fenders which are covered by a tire chain net, each end shall be linked together with one to two ring(s).
2.Sling-type fender: fenders which are designed to be used without a protection net.
Initial internal pressure:
1.Pneumatic fender 50 (initial internal pressure 50 KPa)
2.Pneumatic fender 80 (initial internal pressure 80 KPa)

Specification
Size(mm)
50KPa  Fender
80KPa Fender

Diameter

Length
Energy absorption
(KJ)
Reaction
(KN)
Weight
(KG)
Energy absorption
(KJ)
Reaction
(KN)
Weight
(KG)
500
1000
6
64
25
8
80
30
600
1200
10
86
35
13
108
42
700
1500
17
137
50
21
171
60
1000
1500
32
181
80
40
266
96
1000
2000
45
257
100
56
321
120
1200
2000
63
297
120
79
371
144
1350
2500
100
426
170
125
533
204
1500
3000
153
579
320
191
724
384
1700
3000
190
637
400
238
796
480
2000
3500
308
875
590
385
1094
708
2500
4000
663
1380
1000
829
1725
1200
2500
5500
932
2010
1400
1165
2513
1680
3000
5000
1050
2030
1800
1313
2538
2160
3000
6000
1315
2488
2200
1644
3110
2640
3300
6500
1814
3015
2700
2268
3769
3240
3500
6000
2018
3286
2800
2523
4018
3360
3500
6500
2325
3656
3200
2906
4570
3840
3500
7500
2650
4018
3600
3313
5023
4320
4500
9000
4752
5747
6800
6633
7551
7200

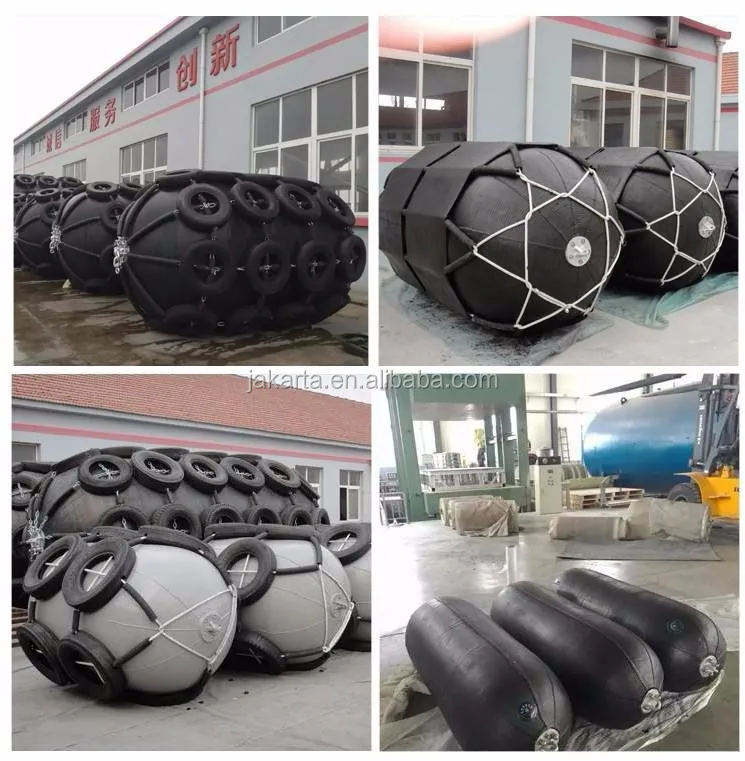

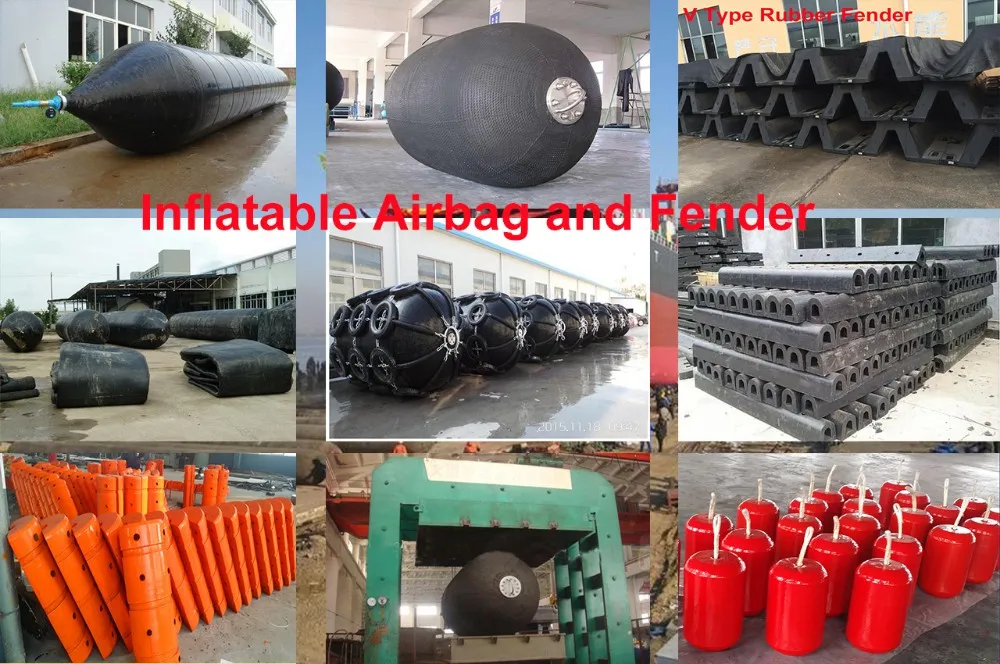

Detailed Image
Exhibition &Visitors
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Our Service


1.One-to-One VIP service.

2.Lifelong after-sale service.

3.Professional suggestions for suitable size and quantity.

4.Teach customers to use the products on site .

5.Any questions will be replied within 24 hours.


FAQ


1."I have ships but don't know how to choose the size of fenders ,can you help me."
Answer: Don't worry .We have more than 20 years' experience.
Pls tell me information of your ship, we can suggest suitable size and quantity for you.

2."I want to try your fenders, but I never use it and don't know how to use ,can you help me?"
Answer: Don't worry. We will send instruction book together with fenders.

3."I have a small ship, it just need few fenders, what's your MOQ?"
"Some of my fenders were damaged and I want to replace them, what's your MOQ?"
Answer: Our MOQ is 1PC.

4."How about the lifespan of your fenders?"
Answer: Designed lifespan of our fenders is 6 to 10 years

5."What's your warranty period ?"
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.

6."What kind of certificate can you provide ?"
Answer: CCS, SGS etc. certificate is available.
